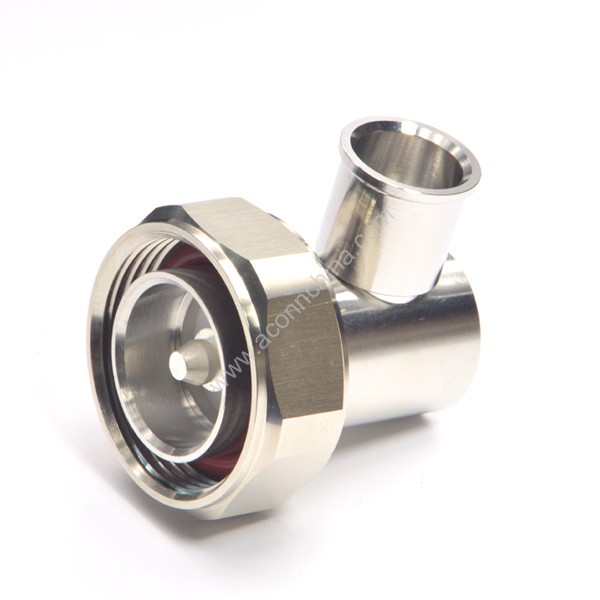

Product Name:RF connector DIN male R/A soldering for 1/2" super flexible cable

Details

Product Specification
Brand:ACONN
Connector Interface:7-16 DIN  IEC 60169-4
Body Style:R/A
Gender:Male
Connector Impedance:50ohm
Frequency Range:DC~3GHz
VSWR:≤1.25(DC~3GHz)
Outer Contact Resistance,Maximum:1.50 mOhm
Inner Contact Resistance,Maximum:0.40 mOhm
Withstand Voltage (at Sea Level):4000V rms, 50 Hz
Insulation Resistance,Minimum:10000 MOhm
Outer Contact Plating:Trimetal(CuSnZn)
Inner Contact Plating:Silver
Insulation:PTFE
O-Ring:Silicon Rubber
Interface Durability:500 cycles
Operating Temperature:-40°C to +85°C
