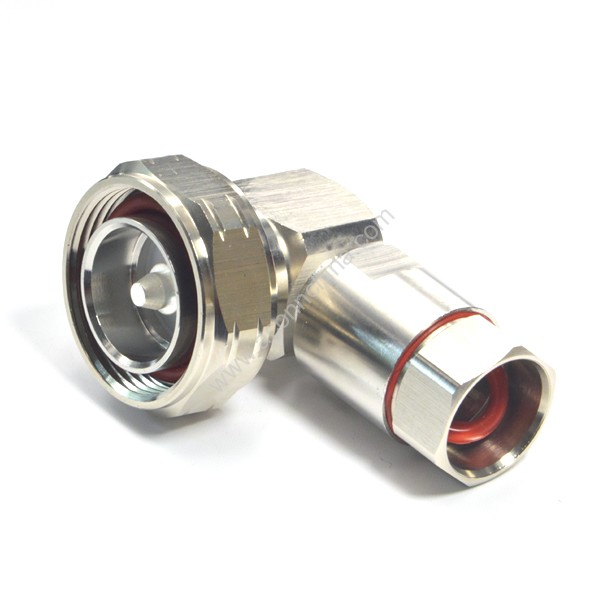

Product Name:RF connector DIN male R/A clamp for 1/2" flexible cable

Details

Product Specification
Brand:ACONN
Connector Interface:DIN  IEC 60169-4
Body Style:R/A 90º
Gender:Male
Connector Impedance:50ohm
Frequency Range:DC~7.5GHz
VSWR:≤1.20(0~3GHz)
Outer Contact Resistance,Maximum:1.5 mOhm
Inner Contact Resistance,Maximum:0.4 mOhm
Withstand Voltage (at Sea Level):4000V rms, 50 Hz
Insulation Resistance,Minimum:10000 MOhm
Outer Contact Plating:Nickel/Trimetal
Inner Contact Plating:Silver/Gold
Insulation:PTFE
O-Ring:Silicon Rubber
Interface Durability:500 cycles
Operating Temperature:-40°C to +85°C
