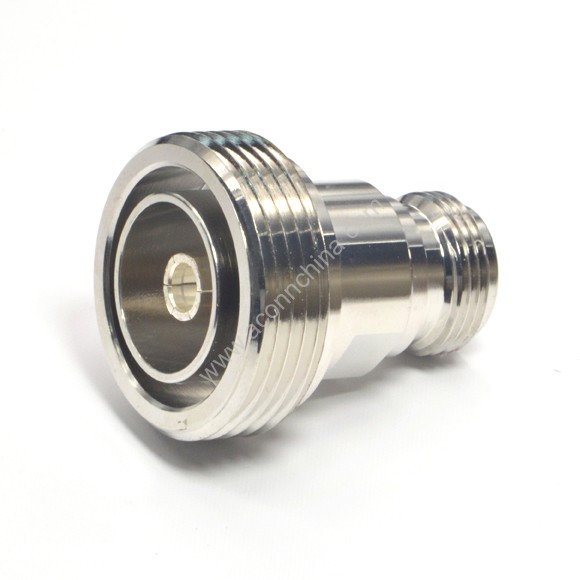

Product Name:Adaptor DIN female to N female

Details

Product Specification
Brand:ACONN
Connector Interface:N IEC 60169-16
Body Style:Straight
Gender:Female-Female
Connector Impedance:50ohm
Frequency Range:5-3000MHz
VSWR:≤1.10(5-3000MHz)
Outer Contact Resistance,Maximum:1mΩ
Inner Contact Resistance,Maximum:0.4mΩ
Insulation Resistance,Minimum:10000 MOhm
Outer Contact Plating:Nickel
Inner Contact Plating:Silver/Gold
Insulation:PTFE
O-Ring:Silicon Rubber
Interface Durability:500 cycles
Operating Temperature:-55°C to +85°C
